PC Power Supply Wiring

PC power supply wiring installation tips guidelines. Personal computers have numerous parts that have to be supplied power in order for the computer to properly function. Different parts of the computer are powered by the PC power supply unit wiring. Some of the parts are the;

1. Central processing unit, which is practically the major computer part, has its own wiring system. This wiring system is further redistributed to the to the other hardware parts of the central processing unit and they all get supercharged differently.

2. Motherboard is another important component of the computer that must be charged so that it can make the computer run smoothly.

Tips Guidelines for PC Power Supply Wiring

If any of the wires that are responsible for charging the computer are not supplying the required charge then the computer will develop problems when it is being used. The wires that connect the motherboard of the personal computer are basically double and one of the is visibly green.

3. Computer disk drives have multiple wires that connect them to the PC. The wires are minute and colored at the same time thus very easily seen. The different wires have different electric potentials thus should not be cross-wired at any one time.

4. The Computer monitor, which is responsible for the images on the screen, also has separate PC wires. If the CPU is powered and the monitor is not charged then it is going to be impossible to actually use the computer.

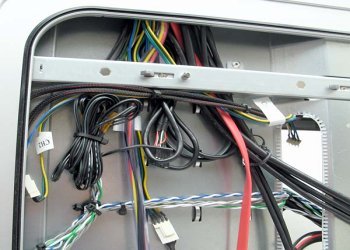

There is also the main wiring of the personal computer that links all the computer parts to the power system. The PC supply wiring does not use a lot of electricity, thus making it efficient energy wise.

When the PC wires start wearing out, then need to be replaced quickly because they can pose as a danger to not only the users but also the computer can be easily damaged. The power source could also be problematic at times not just the wiring.
